DIMENSIONS IN MM. OF OUR CONICAL FERRULES
ART. NR. | ARTICLE NAME | A | B | C | D | E | F |
1241420 | KO. RING 14,5 X 16 | 14,2 | 16 | 5 | 10,5 | 4 | 14,4 |
1241430 | KO. RING 14,5 X 16 | 14,2 | 16 | 6 | 10,5 | 4 | 14,4 |
1241620 | KO. RING 16 X 16 | 15,6 | 16 | 5,5 | 13 | 5 | 15,8 |
1241630 | KO. RING 16 X 16 | 15,6 | 16 | 7,5 | 13 | 5 | 15,8 |
1241720 | KO. RING 17 X 17 | 16,9 | 17 | 8,5 | 14 | 6 | 17,1 |
1241820 | KO. RING 18 X 15 | 18 | 15 | 9 | 15 | 7 | 18,2 |
1242020 | KO. RING 20 X 19 | 19,7 | 19 | 11,5 | 17 | 5 | 19,9 |
1242040 | KO. RING 20 X 18,5 | 19,8 | 18,5 | 9 | 15 | 7 | 20,1 |
1242050 | KO. RING 20 X 30 | 20 | 30 | 8,5 | 14 | 9 | 20,3 |
1242220 | KO. RING 22 X 35 | 21,8 | 35 | 11 | 15 | 15 | 22,1 |
1242320 | KO. RING 23 X 24 | 23 | 24 | 10,5 | 17,5 | 6 | 23,2 |
1242420 | KO. RING 24 X 25,5 | 23,9 | 25,5 | 10 | 17 | 7 | 24,2 |
1242430 | KO. RING 24 X 23 | 24 | 23 | 12 | 16 | 7 | 24,2 |
1242530 | KO. RING 25 X 21 | 25 | 21 | 14 | 19 | 5 | 25,3 |
1242920 | KO. RING 29 X 38 | 29 | 38 | 13 | 18,5 | 9 | 29,3 |
1242120 | KO. RING 21 X 27,5 | 21 | 27,5 | 10 | 14 | - | 21,2 |
1241920 | KO. RING 19,4 X 27 | 19,4 | 27 | 9 | 12,5 | - | 19,6 |
1241520 | KO. RING 15,5 X 23,5 | 15,5 | 23,5 | 7 | 9,5 | - | 15,7 |
All ferrules we produce, can be delivered in 6 different versions:
The opening of the ferrules can nearly always be changed in size or can be adjusted into a slit.

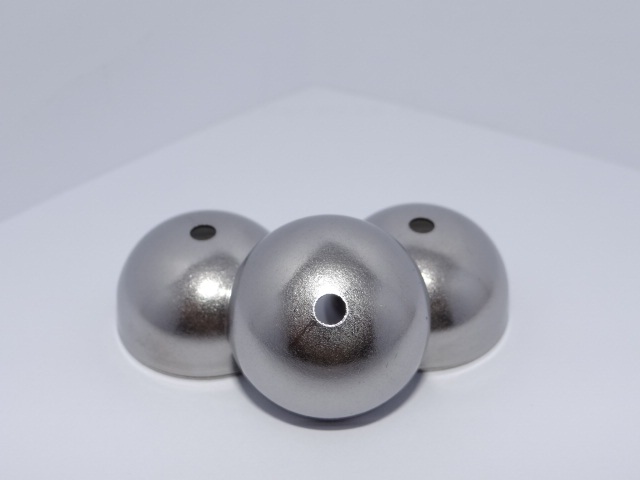

We also produce the following product:
Article number: 1244000
Dimensions in mm.:
Height: 16,2
Width: 29,2
Hole: 4
Thickness of the material: 0,7
Please contact us if you’re interested in knowing our prices, delivery times etc. Would you be so kind to let us know which product you’re interested in and how much you expect to order, at once or perhaps monthly/yearly?
The more information we receive, the quicker we can respond and if appropriate make you a proper offer.
We look forward to hearing from you!
